What should an interface say when it does not know yet?

Name: SaaS Mirror interface-state fixture observations
Creator: SaaS Mirror
Published: 2026-09-16
License: https://saasmirror.com/terms

Twelve fictional states, one explicit evidence boundary, and a downloadable record another reviewer can inspect.

Awesome PatelPublisher · ChicagoPublished September 16, 2026Study 2026-09-16.1

Interfaces make factual claims. A loading message says work is underway. An empty message says a completed result contains nothing. A success message says the promised outcome has been established. This study provides a small public fixture for keeping those claims within the evidence available to the interface.

The twelve scenarios are fictional teaching records. They report no customer, participant, private account, or production-product behavior. The observed results below verify how this fixture rendered during one documented browser run.

CONTROLLED PUBLIC FIXTURE

Inspect twelve evidence boundaries.

Select a fictional state. The preview separates what its fixture establishes from what remains unknown.

pattern-library / fictional fixtureIS-01 · initial-load

TitleNoteSearch

Clean fictional library; no collection request has started.

Ready to run

Run the scripted collection request and hold it open.

The result region is intentionally absent until the transition runs.

Established by this fixture: No transition result yet.
Still unknown: Run the transition before interpreting its result.
Fixture counters: Baseline reset

Fictional local fixture · no account, request, participant, or production product is represented

Method

Load the built public fixture with its reviewed scenario definitions.
Select every state at a desktop viewport and a narrow viewport.
Record the rendered fixture ID, visible message, semantic role, action, preserved sample input, focused scenario control, CSS viewport, device pixel ratio, and user agent.
Repeat the initial loading state after the variants at each viewport.
Capture four representative screenshots from the same built page and compare the public JSON and CSV with the browser record.

Read the complete methodology or download the blank review worksheet.

Recorded observations

24 browser observations are included. “Pass” means the rendered teaching fixture matched its reviewed definition; it is not a judgment about another product.

Observed fixture output by evidence ID
Evidence	Viewport	Fixture	Message	Role	Action	Input	Focus	Result
IS-01-D	desktop 1280×1300	initial-load	Loading saved patterns	status	None	None	run-control	pass
IS-02-D	desktop 1280×1300	background-refresh	Refreshing 3 saved patterns	status	Keep browsing	None	run-control	pass
IS-03-D	desktop 1280×1300	first-use-empty	No saved patterns yet	status	Create first pattern	None	run-control	pass
IS-04-D	desktop 1280×1300	filtered-empty	No patterns match “blue”	status	Clear filters	Search: blue	search	pass
IS-05-D	desktop 1280×1300	invalid-field	Enter a pattern name	alert	Return to name	Note: Ocean grid with 24 px repeat	title	pass
IS-06-D	desktop 1280×1300	permission-denied	You do not have permission to publish this pattern	alert	Return to drafts	Title: Harbor lines \| Note: Confirm whether the fieldnote is available before offering another submission.	summary	pass
IS-07-D	desktop 1280×1300	request-failed	The pattern could not be saved	alert	Retry save	Title: Morning tiles \| Note: Confirm whether the fieldnote is available before offering another submission.	summary	pass
IS-08-D	desktop 1280×1300	unknown-outcome	We could not confirm whether the pattern was saved	alert	Check save status	Title: Evening grid \| Note: Confirm whether the fieldnote is available before offering another submission.	summary	pass
IS-09-D	desktop 1280×1300	accepted-pending	Export queued	status	View progress	Note: 12 pattern records	run-control	pass
IS-10-D	desktop 1280×1300	partial-completion	Two images uploaded; one still needs attention	status	Review failed image	Note: cover.png · detail.png · print.png	run-control	pass
IS-11-D	desktop 1280×1300	completed	Pattern saved	status	View saved pattern	Title: Harbor lines \| Note: Confirm whether the fieldnote is available before offering another submission.	run-control	pass
IS-12-D	desktop 1280×1300	record-unavailable	This saved pattern is unavailable	alert	Return to library	Search: FN-1042	summary	pass
IS-01-N	narrow 390×1400	initial-load	Loading saved patterns	status	None	None	run-control	pass
IS-02-N	narrow 390×1400	background-refresh	Refreshing 3 saved patterns	status	Keep browsing	None	run-control	pass
IS-03-N	narrow 390×1400	first-use-empty	No saved patterns yet	status	Create first pattern	None	run-control	pass
IS-04-N	narrow 390×1400	filtered-empty	No patterns match “blue”	status	Clear filters	Search: blue	search	pass
IS-05-N	narrow 390×1400	invalid-field	Enter a pattern name	alert	Return to name	Note: Ocean grid with 24 px repeat	title	pass
IS-06-N	narrow 390×1400	permission-denied	You do not have permission to publish this pattern	alert	Return to drafts	Title: Harbor lines \| Note: Confirm whether the fieldnote is available before offering another submission.	summary	pass
IS-07-N	narrow 390×1400	request-failed	The pattern could not be saved	alert	Retry save	Title: Morning tiles \| Note: Confirm whether the fieldnote is available before offering another submission.	summary	pass
IS-08-N	narrow 390×1400	unknown-outcome	We could not confirm whether the pattern was saved	alert	Check save status	Title: Evening grid \| Note: Confirm whether the fieldnote is available before offering another submission.	summary	pass
IS-09-N	narrow 390×1400	accepted-pending	Export queued	status	View progress	Note: 12 pattern records	run-control	pass
IS-10-N	narrow 390×1400	partial-completion	Two images uploaded; one still needs attention	status	Review failed image	Note: cover.png · detail.png · print.png	run-control	pass
IS-11-N	narrow 390×1400	completed	Pattern saved	status	View saved pattern	Title: Harbor lines \| Note: Confirm whether the fieldnote is available before offering another submission.	run-control	pass
IS-12-N	narrow 390×1400	record-unavailable	This saved pattern is unavailable	alert	Return to library	Search: FN-1042	summary	pass

Download JSON · Download CSV

Representative evidence

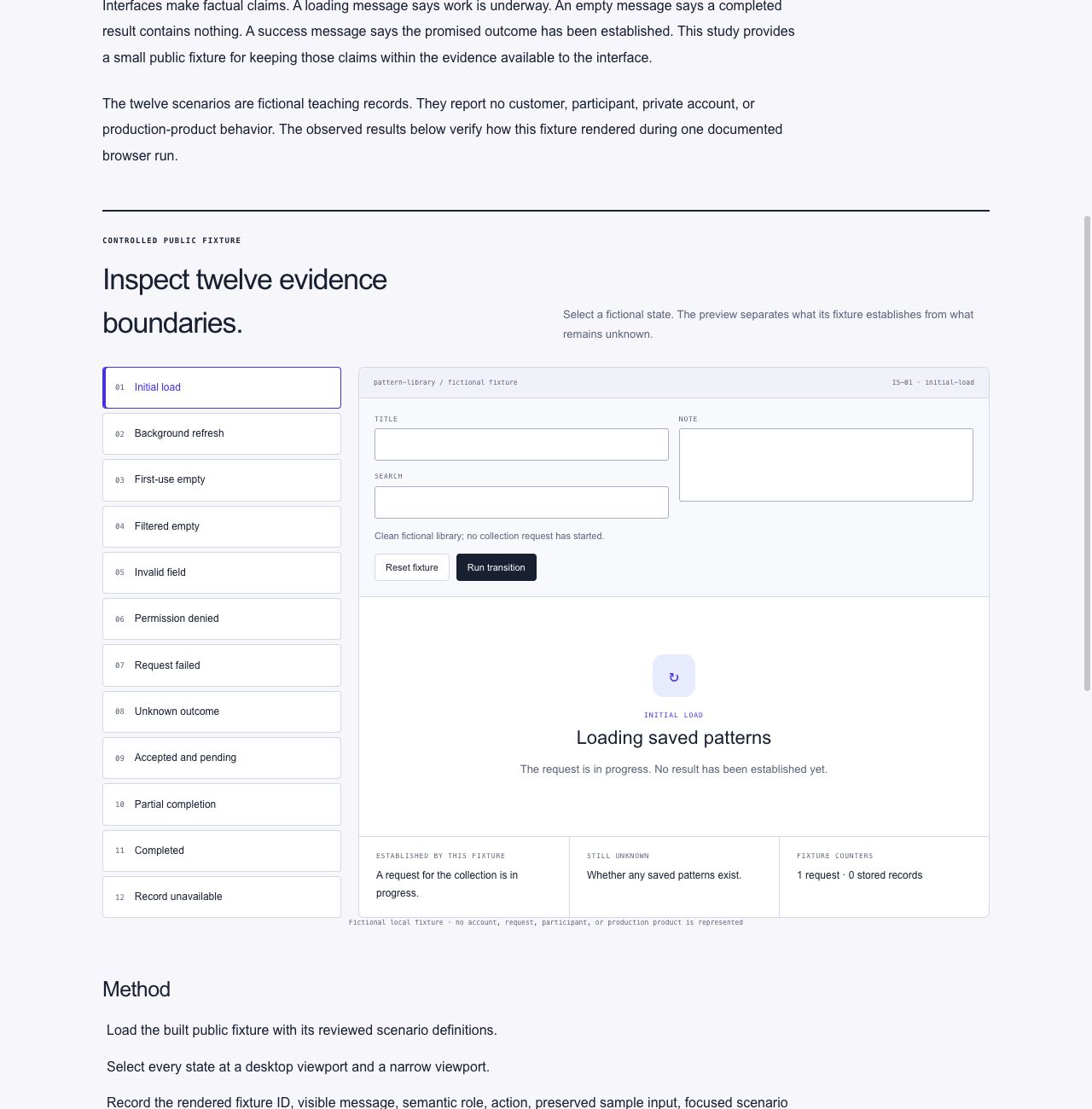

Initial loading result in the SaaS Mirror interface-state study — Initial load after the scripted transition at the recorded desktop viewport. The fixture states that a request is in progress and does not claim that the collection is empty.

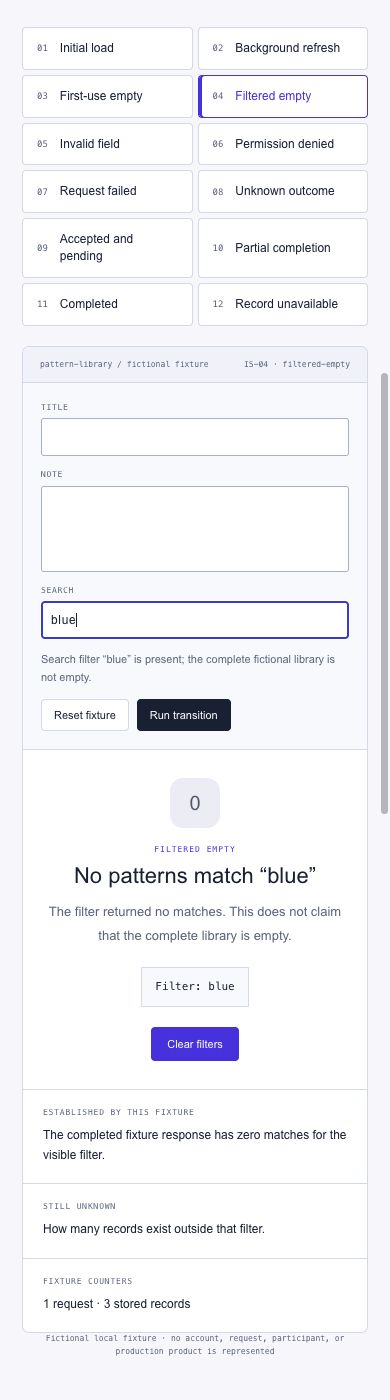

Filtered empty fixture at the narrow study viewport — Filtered empty at the recorded narrow viewport. The message applies to the visible filter rather than the complete library.

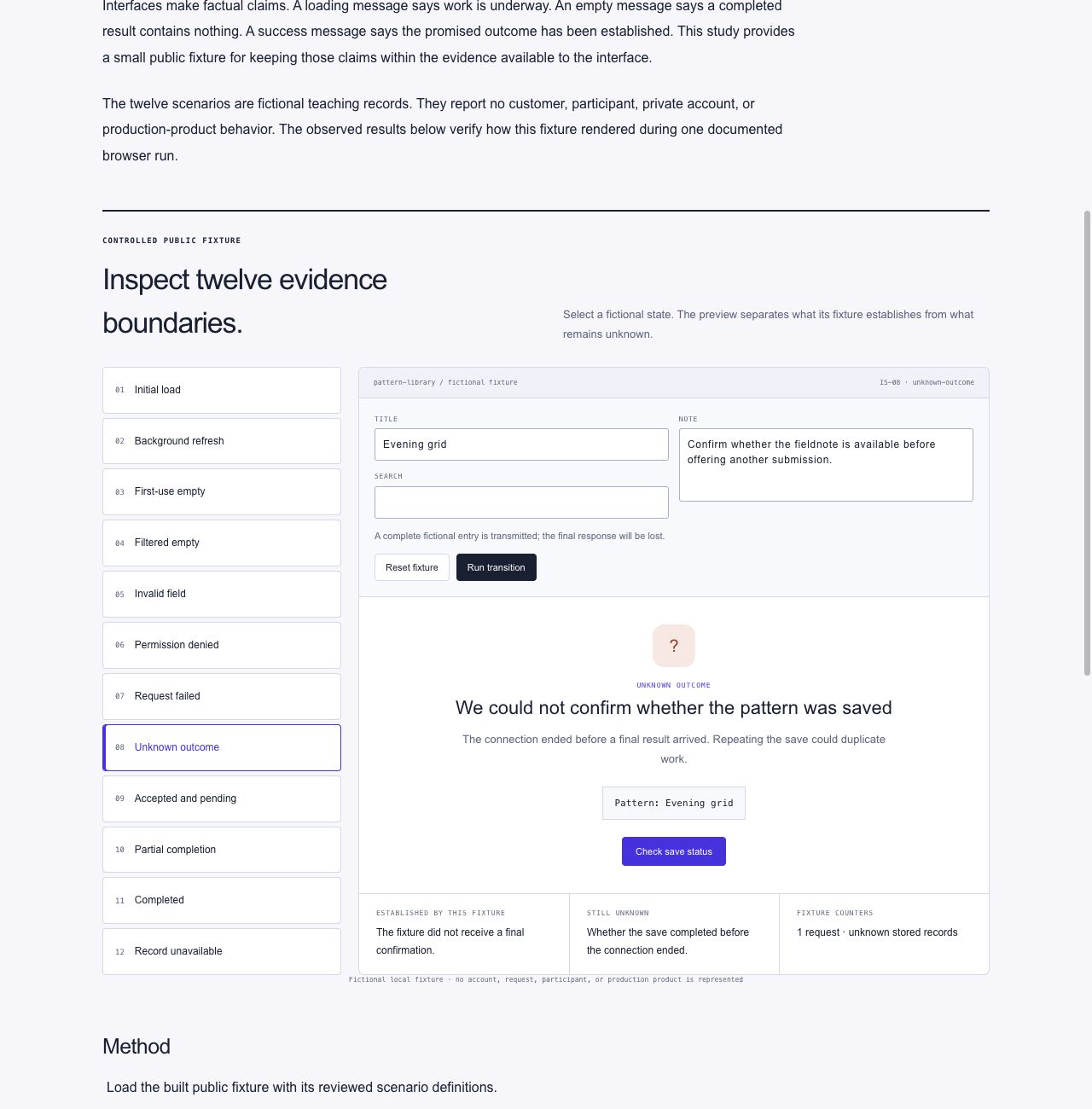

Unknown save outcome fixture in the interface-state study — Unknown outcome at the recorded desktop viewport. The next action checks status instead of blindly repeating a possibly completed save.

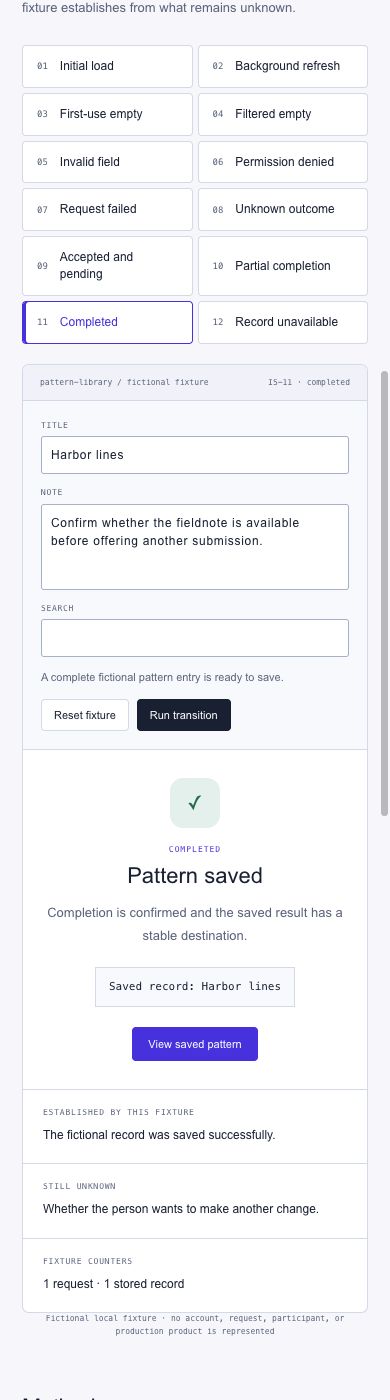

Completed fixture at the narrow study viewport — Confirmed completion at the recorded narrow viewport, with a control representing the next route to the saved result.

Limits

One browser environment cannot establish behavior across browsers, operating systems, fonts, assistive technologies, or network services.
The fixtures define their own facts; they do not prove that another application has the same state or server evidence.
Inspecting status and alert roles is not a screen-reader test or accessibility-conformance evaluation.
A fitting narrow layout does not establish browser-zoom, text-resize, mobile-device, usability, security, or production readiness.
Future corrections will retain the evidence version and explain substantive changes rather than silently refreshing the date.

Primary references: W3C Understanding Status Messages and RFC 9110: 202 Accepted.
